Design & cost
Five practical ways to lower laser-cut part cost
Start with the features that drive work: material, cutting, setup, and added operations. Compare one change at a time so you can see what actually helps.
On this page
1. Compare the quantities you can actually use
Setup is shared across a quote line, so a small batch can have a lower unit price than a single part. Enter realistic quantities and compare the total as well as the price per part. A lower unit price is not a saving if you buy parts you will never use.
Keep the geometry, material, and thickness unchanged while you compare quantities. The worked bracket example shows a published comparison at 1, 5, and 25 pieces.

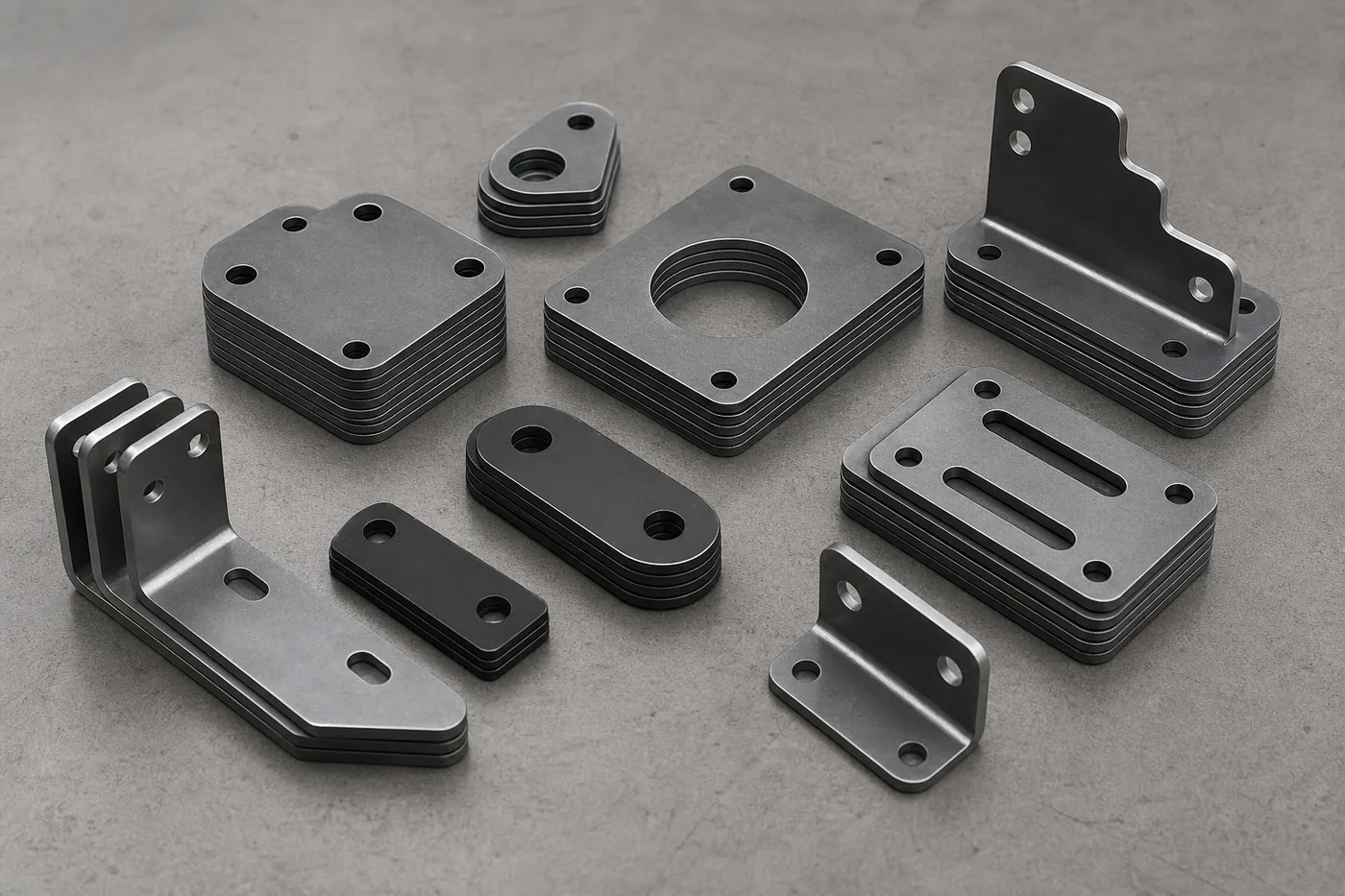

2. Remove cuts that do not serve the part
Every internal contour adds cutting to a profile. A decorative cutout or extra hole may be worth keeping, but it should have a purpose. Compare the same part with and without optional features; do not remove mounting holes or other functional geometry just to reduce the quote.
| Same 4 × 6 in plate | 8 holes | 4 holes |
|---|---|---|
| Outside cut length | 20.00 in | 20.00 in |
| Total cut length | 29.42 in | 24.71 in |
| Closed contours | 9 | 5 |
Removing four holes reduces this example’s cut length by about 4.71 inches and removes four internal contours. The dollar change depends on the selected material, thickness, quantity, and quote settings; the geometry alone does not establish a price.
3. Choose material for the actual requirements
Specify the material and thickness needed for the part’s strength, environment, fit, and finish. If the design permits an alternative, compare it in the quote. Do not assume that the lowest material price produces an equivalent part, or that one thickness can be substituted without checking the design.
4. Review bends and secondary operations
A bend, tapped hole, countersink, hardware insertion, or finish adds work beyond cutting the profile. Make sure each requirement is intentional and included in the request. Combining a feature with the wrong process can create rework even if the first quote looks cheaper.
For formed parts, compare bend count and quantity as well as the flat geometry. If a design change affects the finished shape or assembly, confirm it before ordering.
5. Send clean, complete files
Duplicate contours, open profiles, extra views, and unclear requirements can interrupt quoting or require follow-up. A clean file does not guarantee a lower cutting price, but it helps the quote describe the part you intended and reduces avoidable clarification.
- Check scale and units before upload.
- Use one CAD file per part, with no duplicate geometry.
- Compare the uploaded preview with the intended revision.
- Include requirements for operations that are not represented in the cutting geometry.
